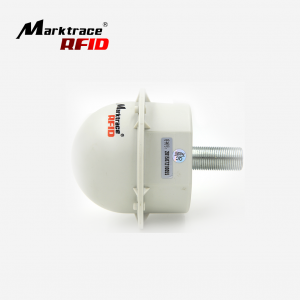

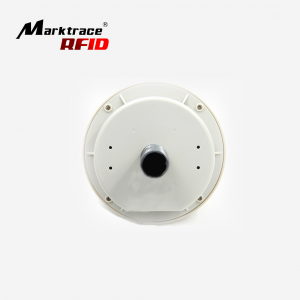

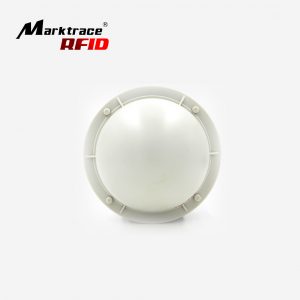

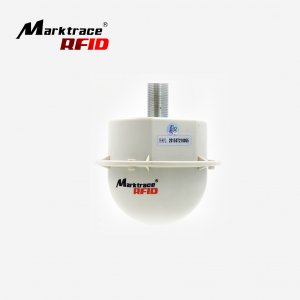

Product overview

• MR3102E Omni-directional reader suit for “non-directional identify” .MR3102E applying in far distance, quick identification, meeting the special demand of identification, can identify, track and orientate more than 100 active tags simultaneity.

Product parameters

• Items?Parameter
• Physical property
• matrerial?ABS
• dimension?92*Φ110mm
• weight?200g
• way to install?wall-mounted, ceiling fixed
• 2.4G RF feature
• Identify type?Omni-directional, 360 degree covered
• Signal modulation mode?GFSK
• Traffic rate?1Mbit/s
• Working frequency?2440MHz
• MAX receive sensitivity?-90dbm
• Antenna Gain?2dbi，dual polarization
• Communication interface
• RS232 (TCP to RS232 converter needed)?Baud rate：115200bps；data bits：8；stop bit：1；check bit：N
• RJ45?10/100self-adaption
• Power supply features
• Working current?350mA
• Working voltage?9V DC
