PROJECT DETAILS

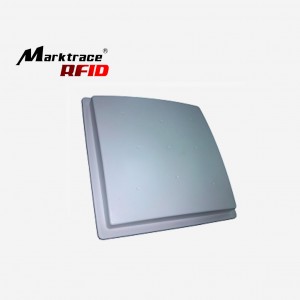

| Product Name： | UHF Middle Range Integrated Reader |
|---|---|
| Product Model： | MR6121E |
| Product Category： | UHF RFID READER |
Product overview
- 1 Introduction?MR6121E UHF RFID Reader base on new generation reader technology platform development ，combine UHF RFID advanced technology and many years reader application base experience，This reader Is more stable and can use in various applications
- 2 Protocol<ISO/IEC18000-6 TYPE B>?<800/900MHz RFID Technology application implementation regulations>
- 3 Parameter?Item ?Parameter
Product parameters
- Frequency:?US（902～928MHz）, China（920～925MHz）, EU（865～867MHz）, other frequency selectable
- Protocol:?ISO18000-6B/6C,EPC G2
- RF power:?0～31dBm adjustable
- Sensitivity:?-80dBm(9dBi antenna more than 6 m）
- Read speed:?Multi tag-200pcs/second, single tag 2000 times/minute
- Processor:?ARM CORTEX M3 100M CPU
- Memory:?16KB tag data memory and 32KB Ferroelectric memory
- Data Interface:??100M Ethernet Interface?RS232/RS485 interface wiegand 26/34 ?One team input and one team output（TTL)，one team Relay
- Power Supply: ?DC+9V～+15V
- Working Temp.:?-20～60℃
